HIMUNICATION HM 390

<div class="tab_page" id="tab_pictures">

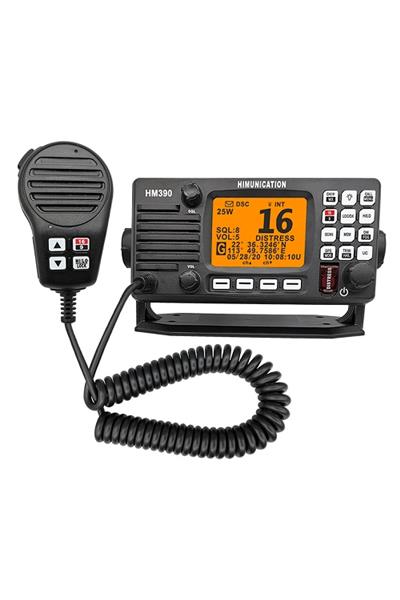

The HM390 is a new generation VHF Marine Band DSC Class-D radio and integrated GPS receiver.<br />
The HM390 marine radio is equipped with a large LCD monitor which shows clearly all data from most viewing angles and conditions.<br />
Standard with features like ATIS, FOG anchor alarm, MOB function and more. Simple and easy to operate, almost all functions are accessible by using only 4 buttons.<br />
Slim and compact design which makes it easy to install with the supplied materials. Despite the compact size the radio is equipped with a large loudspeaker.<br />
<br />
Features<br />
<ul>
<li>
Slim and compact design</li>
<li>
Quick heat dissipation</li>
<li>
ATIS</li>
<li>
Real Class D DSC approved (MMSI option)</li>
<li>
MOB alert (Man-Overboard)</li>
<li>
Loud and clear audio, with hailer and external speaker support</li>
<li>
Two potentiometers to control volume and squelch</li>
<li>
NMEA0183 compatible</li>
<li>
Channel 31 and 37 pre-programmed</li>
<li>
Waterproof IP67</li>
<li>
1 or 25 Watt output power, this can vary per channel and regulations</li>
<li>
Dual- and Tri-watch</li>
<li>
Large LCD with full dot matrix display</li>
<li>
Built-in GPS receiver<br />
<br />
Specifications</li>
<li>
TX Frequency: 156.025--157.425 MHz</li>
<li>
RX Frequency: 156.300--162.000 MHz</li>
<li>
Digital Selectivity Calling (DSC): Class-D with dual receiver</li>
<li>
Channel spacing: 25kHz</li>
<li>
Channel banks: INT/USA/Canadian (selectable by software)</li>
<li>
Modulation mode: FM (16K0G3E), DSC/ATIS (16K0G2B)</li>
<li>
Antenna impedance: 50 Ohm (nominal)</li>
<li>
Power supply: 13.8V DC</li>
<li>
Sensitivity at 12dB SINAD: ?-5 dB?V (EMF)</li>
<li>
Squelch sensitivity: ?-5 dBµ (EMF)</li>
<li>
Audio output power: 5W @ 4 Ohm</li>
<li>
Audio Power Output (hailer): 20W @ 4 Ohm</li>
<li>
Audio Distortion: 5%</li>
<li>
RF Output power: 1 / 25 Watt</li>
<li>
Harmonic Emissions: 0.25µW</li>
<li>
Current drain, Standby / TX (high) / RX: 0.5A / 6A / 1A (@ 13.8V)</li>
<li>
Maximum frequency deviation: ±5.0kHz</li>
<li>
Local Oscillator mode: PLL</li>
<li>
Ambient operating temperatures: -15?C to +55?C</li>
<li>
Waterproof index: IP67</li>
<li>
Compass safe distance: 0.8m</li>
<li>
Buddy list: 20/50/100</li>
<li>
Private channels: 99<br />
<br />
Communication networks</li>
<li>
Communication ports: NMEA0183</li>
<li>
NMEA input (receive): RMC, GGA, GLL, ZDA, VTG, GSV</li>
<li>
NMEA output (transmit): DSC (for DSC call), DSE (for enhanced position) AIVDM (AIS)<br />
<br />
AIS Receiver</li>
<li>
Frequency: 161.9750 MHz / 162.025 MHz</li>
<li>
Number of Channels: (2) Dual Channels<br />
<br />
Dimension and Weight</li>
<li>
Fixed unit dimensions (L/W/H): 210 mm x 111 mm x 57 mm</li>
<li>
Fixed unit dimensions on mounting bracket (L/W/H): 216 mm x 134 mm x 57 mm</li>
<li>
Fixed unit weight: 1.2 kg<br />
<br />
GPS</li>
<li>
Channels: 56</li>
<li>
Sensitivity: Tracking:-161dBm / Reacquisition:-160dBm / Cold start:-147dBm</li>
<li>
Cold start/ Hot start: 60 seconds, average / 40 second, average<br />
<br />
<br />
PRICE €249</li>
</ul>
</div>
<p>
 </p>

The HM390 is a new generation VHF Marine Band DSC Class-D radio and integrated GPS receiver.
The HM390 marine radio is equipped with a large LCD monitor which shows clearly all data from most viewing angles and conditions.
Standard with features like ATIS, FOG anchor alarm, MOB function and more. Simple and easy to operate, almost all functions are accessible by using only 4 buttons.
Slim and compact design which makes it easy to install with the supplied materials. Despite the compact size the radio is equipped with a large loudspeaker.

Features

Slim and compact design
Quick heat dissipation
ATIS
Real Class D DSC approved (MMSI option)
MOB alert (Man-Overboard)
Loud and clear audio, with hailer and external speaker support
Two potentiometers to control volume and squelch
NMEA0183 compatible
Channel 31 and 37 pre-programmed
Waterproof IP67
1 or 25 Watt output power, this can vary per channel and regulations
Dual- and Tri-watch
Large LCD with full dot matrix display
Built-in GPS receiver

Specifications
TX Frequency: 156.025--157.425 MHz
RX Frequency: 156.300--162.000 MHz
Digital Selectivity Calling (DSC): Class-D with dual receiver
Channel spacing: 25kHz
Channel banks: INT/USA/Canadian (selectable by software)
Modulation mode: FM (16K0G3E), DSC/ATIS (16K0G2B)
Antenna impedance: 50 Ohm (nominal)
Power supply: 13.8V DC
Sensitivity at 12dB SINAD: ?-5 dB?V (EMF)
Squelch sensitivity: ?-5 dBµ (EMF)
Audio output power: 5W @ 4 Ohm
Audio Power Output (hailer): 20W @ 4 Ohm
Audio Distortion: 5%
RF Output power: 1 / 25 Watt
Harmonic Emissions: 0.25µW
Current drain, Standby / TX (high) / RX: 0.5A / 6A / 1A (@ 13.8V)
Maximum frequency deviation: ±5.0kHz
Local Oscillator mode: PLL
Ambient operating temperatures: -15?C to +55?C
Waterproof index: IP67
Compass safe distance: 0.8m
Buddy list: 20/50/100
Private channels: 99

Communication networks
Communication ports: NMEA0183
NMEA input (receive): RMC, GGA, GLL, ZDA, VTG, GSV
NMEA output (transmit): DSC (for DSC call), DSE (for enhanced position) AIVDM (AIS)

AIS Receiver
Frequency: 161.9750 MHz / 162.025 MHz
Number of Channels: (2) Dual Channels

Dimension and Weight
Fixed unit dimensions (L/W/H): 210 mm x 111 mm x 57 mm
Fixed unit dimensions on mounting bracket (L/W/H): 216 mm x 134 mm x 57 mm
Fixed unit weight: 1.2 kg

GPS
Channels: 56
Sensitivity: Tracking:-161dBm / Reacquisition:-160dBm / Cold start:-147dBm
Cold start/ Hot start: 60 seconds, average / 40 second, average

PRICE €249
