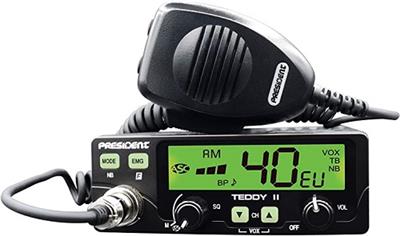

PRESIDENT TEDDY 2

<p>
	<strong>FEATURES, FUNCTIONS AND SPECIFICATIONS:</strong><br />
	&bull; 40 channels AM / FM / UK FM<br />
	&bull; Up/down channel selector<br />
	&bull; Volume adjustment and ON/OFF<br />
	&bull; Manual squelch and ASC<br />
	&bull; Multi-functions LCD display<br />
	&bull; S-meter<br />
	&bull; ANL filter, NB<br />
	&bull; VOX<br />
	&bull; F function key<br />
	&bull; Beep Function<br />
	&bull; Mode switch AM / FM<br />
	&bull; Preset channel programmable<br />
	&bull; Front microphone plug<br />
	&bull; External loudspeaker jack<br />
	<br />
	<strong>General</strong><br />
	&bull; Number of channels: 40<br />
	&bull; Modulation modes: AM / FM<br />
	&bull; Frequency ranges: from 26.965 MHz to 27.405 MHz<br />
	&bull; Antenna impedance: 50 ohms<br />
	&bull; Power supply: 12 V<br />
	&bull; Size: 125 (W) x 151 (D) x 45 (H)<br />
	&bull; Weight: 0.9 kg<br />
	&bull; Filter: ANL (Automatic Noise Limiter) built-in<br />
	<br />
	<strong>Transmission</strong><br />
	&bull; Frequency allowance:&nbsp; +/- 200 Hz<br />
	&bull; Carrier power: 4 W AM / 4 W FM<br />
	&bull; Transmission interference: inferior to 4 nW (- 54 dBm)<br />
	&bull; Audio response: 300 Hz to 3 KHz<br />
	&bull; Emitted power in the adj. channel: inferior to 20 &mu;W<br />
	&bull; Microphone sensitivity: 7 mV<br />
	&bull; Drain: 1,7 A (with modulation)<br />
	&bull; Modulated signal distortion:&nbsp;2 %<br />
	<br />
	<strong>Reception</strong><br />
	&bull; Maxi. sensitivity at 20 dB sinad:<br />
	&hellip;0.5 &mu;V - 113 dBm AM<br />
	&hellip;0.35 &mu;V - 116 dBm FM<br />
	&bull; Frequency response: 300 Hz to 3 kHz<br />
	&bull; Adjacent channel selectivity: 60 dB<br />
	&bull; Maximum audio power: 2.5 W<br />
	&bull; Squelch sensitivity:<br />
	&hellip;minimum 0.2 &mu;V - 120 dBm<br />
	&hellip;maximum 1 mV - 47 dBm<br />
	&bull; Frequency image rejection rate: 60 dB<br />
	&bull; Intermediate frequency rej. rate: 70 dB<br />
	&bull; Drain: 160 ~ 420 mA</p>
<p>
	PRICE &euro;109</p>

FEATURES, FUNCTIONS AND SPECIFICATIONS:
• 40 channels AM / FM / UK FM
• Up/down channel selector
• Volume adjustment and ON/OFF
• Manual squelch and ASC
• Multi-functions LCD display
• S-meter
• ANL filter, NB
• VOX
• F function key
• Beep Function
• Mode switch AM / FM
• Preset channel programmable
• Front microphone plug
• External loudspeaker jack

General
• Number of channels: 40
• Modulation modes: AM / FM
• Frequency ranges: from 26.965 MHz to 27.405 MHz
• Antenna impedance: 50 ohms
• Power supply: 12 V
• Size: 125 (W) x 151 (D) x 45 (H)
• Weight: 0.9 kg
• Filter: ANL (Automatic Noise Limiter) built-in

Transmission
• Frequency allowance:  +/- 200 Hz
• Carrier power: 4 W AM / 4 W FM
• Transmission interference: inferior to 4 nW (- 54 dBm)
• Audio response: 300 Hz to 3 KHz
• Emitted power in the adj. channel: inferior to 20 μW
• Microphone sensitivity: 7 mV
• Drain: 1,7 A (with modulation)
• Modulated signal distortion: 2 %

Reception
• Maxi. sensitivity at 20 dB sinad:
…0.5 μV - 113 dBm AM
…0.35 μV - 116 dBm FM
• Frequency response: 300 Hz to 3 kHz
• Adjacent channel selectivity: 60 dB
• Maximum audio power: 2.5 W
• Squelch sensitivity:
…minimum 0.2 μV - 120 dBm
…maximum 1 mV - 47 dBm
• Frequency image rejection rate: 60 dB
• Intermediate frequency rej. rate: 70 dB
• Drain: 160 ~ 420 mA

PRICE €109
