TTI TCB H-100 CB HAND HELD

<div class="tab_page" id="tab_pictures" style="margin-top: 30px; display: block;">

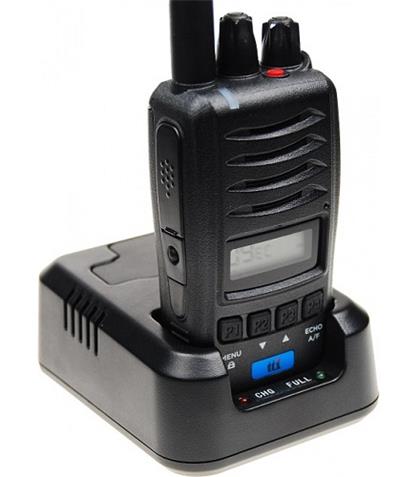

	The TTI TCB-H100 is the new compact handheld CB radio from TTI with ECHO function, VOX function, 3 display colors and many more functions. Optional are a 12/24 volt car charger and a 12/24 volt battery eliminator with external antenna connector.<br />
	<br />
	Features<br />
	<ul>
		<li>
			4 Watt AM/FM</li>
		<li>
			Multinorm: EC, EU, d, I2, I, UE, UK, PL, F, E</li>
		<li>
			Power on/off and volume control knob</li>
		<li>
			Squelch adjuster and DDS (Dynamic Squelch Tuning System)</li>
		<li>
			Emergency button, channel 9/19</li>
		<li>
			PTT button, red LED lights during TX</li>
		<li>
			3 color backlighting: red, amber, green or no color</li>
		<li>
			Scan function</li>
		<li>
			Menu function</li>
		<li>
			Lock function</li>
		<li>
			VOX function, 3 levels</li>
		<li>
			Beep tone</li>
		<li>
			Roger beep</li>
		<li>
			Channel up/down buttons</li>
		<li>
			AM/FM button</li>
		<li>
			Echo function</li>
		<li>
			Signal strength meter</li>
		<li>
			Low battery indicator<br />
			<br />
			Specifications</li>
		<li>
			Frequency range: 26.56-28 MHz</li>
		<li>
			Operating mode: F3E (FM), A3E (AM)</li>
		<li>
			Frequency control: PLL synthesizer</li>
		<li>
			Frequency tolerance: 0.002%</li>
		<li>
			Operating temperature range: -10 to +55 Celsius</li>
		<li>
			Power supply: 7.4V (Li-ion battery)</li>
		<li>
			Size: 57 (W) x 116 (H) x 39 (D)</li>
		<li>
			Weight: 224 gram<br />
			<br />
			Transmitter</li>
		<li>
			Power output: Duty cycle 10% 4 Watts @ 13.2V DC</li>
		<li>
			Modulation: AM: from 85% to 95%, FM: 1.8 kHz +/- 0.2 kHz</li>
		<li>
			Frequency response: 300 Hz to 3000 Hz</li>
		<li>
			Output impedance: 50 Ohms, unbalanced</li>
		<li>
			Harmonic suppression: less than -54 dBm</li>
		<li>
			Current drain: AM full Mod. 1.6A Max.<br />
			<br />
			Receiver</li>
		<li>
			Receiving system: dual conversion superheterodyne</li>
		<li>
			IF frequencies: double conversion 1st 10.695 MHz / 2nd 455 kHz</li>
		<li>
			Sensitivity: 1.4 uV for 10 dB (S + N) / N in AM mode, 0.8 uV for 20 dB SINAD in FM mode</li>
		<li>
			Audio output power: 1W @ 16 Ohm</li>
		<li>
			Audio distortion: less than 8% @ 1 kHz</li>
		<li>
			Image rejection: more than 60 dB</li>
		<li>
			Adjacent channel rejection: more than 60 dB</li>
		<li>
			Conducted spurious: less than -57 dBm</li>
		<li>
			Frequency response: 300 Hz to 2500 Hz</li>
		<li>
			Built-in speaker: 16 Ohms, round</li>
		<li>
			Squelch: adjustable, threshold less than 1 uV, DSS less than 2 uV</li>
	</ul>
	<p>
		&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; PRICE &euro;135</p>
</div>
<p>
	&nbsp;</p>

The TTI TCB-H100 is the new compact handheld CB radio from TTI with ECHO function, VOX function, 3 display colors and many more functions. Optional are a 12/24 volt car charger and a 12/24 volt battery eliminator with external antenna connector.

Features
  • 4 Watt AM/FM
  • Multinorm: EC, EU, d, I2, I, UE, UK, PL, F, E
  • Power on/off and volume control knob
  • Squelch adjuster and DDS (Dynamic Squelch Tuning System)
  • Emergency button, channel 9/19
  • PTT button, red LED lights during TX
  • 3 color backlighting: red, amber, green or no color
  • Scan function
  • Menu function
  • Lock function
  • VOX function, 3 levels
  • Beep tone
  • Roger beep
  • Channel up/down buttons
  • AM/FM button
  • Echo function
  • Signal strength meter
  • Low battery indicator

    Specifications
  • Frequency range: 26.56-28 MHz
  • Operating mode: F3E (FM), A3E (AM)
  • Frequency control: PLL synthesizer
  • Frequency tolerance: 0.002%
  • Operating temperature range: -10 to +55 Celsius
  • Power supply: 7.4V (Li-ion battery)
  • Size: 57 (W) x 116 (H) x 39 (D)
  • Weight: 224 gram

    Transmitter
  • Power output: Duty cycle 10% 4 Watts @ 13.2V DC
  • Modulation: AM: from 85% to 95%, FM: 1.8 kHz +/- 0.2 kHz
  • Frequency response: 300 Hz to 3000 Hz
  • Output impedance: 50 Ohms, unbalanced
  • Harmonic suppression: less than -54 dBm
  • Current drain: AM full Mod. 1.6A Max.

    Receiver
  • Receiving system: dual conversion superheterodyne
  • IF frequencies: double conversion 1st 10.695 MHz / 2nd 455 kHz
  • Sensitivity: 1.4 uV for 10 dB (S + N) / N in AM mode, 0.8 uV for 20 dB SINAD in FM mode
  • Audio output power: 1W @ 16 Ohm
  • Audio distortion: less than 8% @ 1 kHz
  • Image rejection: more than 60 dB
  • Adjacent channel rejection: more than 60 dB
  • Conducted spurious: less than -57 dBm
  • Frequency response: 300 Hz to 2500 Hz
  • Built-in speaker: 16 Ohms, round
  • Squelch: adjustable, threshold less than 1 uV, DSS less than 2 uV

           PRICE €135
