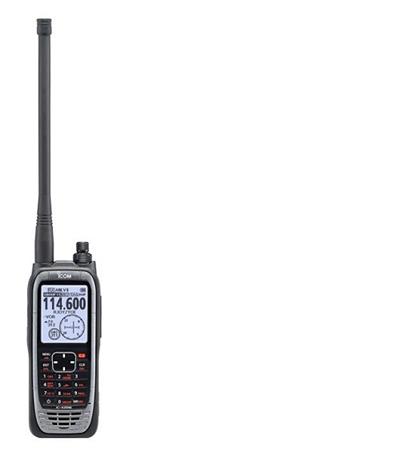

ICOM IC-A25NE

<p>
	<strong>8.33kHz VHF Airband Transceiver</strong></p>
<p>
	The IC-A25NE is the latest development in airband radio technology featuring built-in Bluetooth, GPS and significant VOR navigation functions. Featuring 6 watts of output power, this stylish modern design, easy-to-use interface and large 2.3-inch LCD combine to provide stress-free programming and easy in-flight operation. The handheld includes a large 2350mAh Li-ion battery, providing longer operating time.</p>
<p>
	<b>6 Watts High RF Output Power</b><br />
	For expanded communication coverage, output power has been increased to approximately 6 W typical (PEP) 1.8 W (carrier) compared to the IC-A24E (5/1.5 W (PEP/carrier)).</p>
<p>
	<b>Easy-To-Use Interface</b><br />
	Often used functions are assigned to the ten-key pad and you can directly access the desired function. The enlarged flat sheet keypad offers smooth and swift operation.</p>
<p>
	<b>2.3-inch Large High Visibility LCD</b><br />
	The large, high contrast and highly visible LCD display user-friendly, graphic screens and ensures good readability under sunlight. The operating frequency in large characters can be recognized at a glance. Also, the night mode option allows for easy viewing in low light conditions.</p>
<p>
	<b>&ldquo;Flip-Flop&rdquo; Channel Recall</b><br />
	The IC-A25NE stores the last ten channels used. You can easily recall those channels by using the directional keys or the channel knob or the keypad. This is convenient for switching between several channels, such as NAV and COM channels. You can also freely edit (replace, delete, and change order) the stored recall channels.</p>
<p>
	<b>Built-in Bluetooth for Hands-Free Operation </b><br />
	Hands free operation can be achieved when paired with a compatible third-party wireless Bluetooth headset. When using the optional VS-3 Bluetooth headset, the sidetone function can be used.</p>
<p>
	<b>Intelligent Battery with Detailed Battery Information </b><br />
	The supplied BP-288, 2350 mAh typical intelligent battery pack, provides up to 10.5 hours* of operating time. You can check the condition of the battery pack in the battery status screen. This is very useful for optimum charging and battery health maintenance.</p>
<p>
	<b>Other Features</b><br />
	&bull; 8.33 kHz channel spacing<br />
	&bull; IP57 dust-protection and waterproof construction<br />
	&bull; Operate with six AA-size alkaline batteries with the BP-289 battery case<br />
	&bull; BNC Antenna connection<br />
	&bull; 121.5 MHz emergency key<br />
	&bull; Priority watch<br />
	&bull; VFO scan, memory-channel scan, priority scan<br />
	&bull; ANL (Auto Noise Limiter) for noise reduction<br />
	&bull; Side tone function allows you to hear your voice via an external aviation headset<br />
	&bull; Internal VOX capability<br />
	&bull; 300 memory channels (in 15 memory groups) with 12 character names</p>
<p>
	&nbsp;</p>
<p>
	<b><u>NAVIGATION FUNCTIONS</u></b></p>
<p>
	<b>VOR Navigation Functions</b><br />
	The CDI (Course Deviation Indicator) is detailed like a real VOR instrument; showing any deviation from your course.<br />
	The OBS (Omni Bearing Selector) allows you to change course from the original flight plan.<br />
	The TO-FROM indicator shows the position relationship between your aircraft and the course selected by the OBS.<br />
	The ABSS (Automatic Bearing Set System) function enables you to set the current course or a new course in two simple steps.</p>
<p>
	<b>Near Station Search Function</b><br />
	The near station search function assists you in accessing nearby ground stations. The function searches for nearby stations using the station memories with the GPS position information. To use the near station search function, location data and frequencies of the ground station must be programmed.</p>
<p>
	<b>Built-in GPS with Simplified Waypoint NAV </b><br />
	The simplified waypoint NAV guides you to a destination by using current position information from GPS (also GLONASS and SBAS). The waypoint NAV has two functions: Direct-To NAV and Flight Plan NAV. Up to 10 Flight Plans and 300 waypoints can be memorised in the IC-A25NE.</p>
<p>
	<b>Flight Plan with Android/iOS App</b><br />
	Using RS-AERO1A (Android app) or RS-AERO1I (iOS app), you can make a flight plan on an Android/iOS device and import the plan to the IC-A25NE via Bluetooth. The following four functions are available:</p>
<p>
	1. Create a flight plan<br />
	You can make flight plans on an Android/iOS device by using preprogrammed waypoints in the IC-A25NE.<br />
	2. Set Direct-To NAV<br />
	You can pick up a point on the map and export it to the IC-A25NE for Direct-To NAV.<br />
	3. Display flight plan information<br />
	A flight plan in the IC-A25NE can be displayed on an Android/iOS device.<br />
	4. Display waypoint information<br />
	Preprogrammed waypoints in the IC-A25NE can be exported to an Android/iOS device and plotted on the map application.</p>
<p>
	<b>Two Versions are available for both IC-A25CE and IC-A25NE</b><br />
	A &lsquo;Sport&rsquo; pack is available combining the IC-A25CE or IC-A25NE transceiver with BP-289 AA Battery Case, CP-20 cigarette lighter cable with DC-DC converter, MB-133 belt clip, FA-B02AR antenna and hand strap.</p>
<p>
	A &lsquo;Pro&rsquo; pack is available combining the IC-A25CE or IC-A25NE transceiver with BP-288 Li-Ion battery pack, OPC-2379 headset adapter cable, BC-224 rapid desktop charger, BC-06 AC adapter, CP-20 cigarette lighter cable with DC-DC converter, MB-133 belt clip, FA-B02AR antenna and hand strap.</p>

8.33kHz VHF Airband Transceiver

The IC-A25NE is the latest development in airband radio technology featuring built-in Bluetooth, GPS and significant VOR navigation functions. Featuring 6 watts of output power, this stylish modern design, easy-to-use interface and large 2.3-inch LCD combine to provide stress-free programming and easy in-flight operation. The handheld includes a large 2350mAh Li-ion battery, providing longer operating time.

6 Watts High RF Output Power
For expanded communication coverage, output power has been increased to approximately 6 W typical (PEP) 1.8 W (carrier) compared to the IC-A24E (5/1.5 W (PEP/carrier)).

Easy-To-Use Interface
Often used functions are assigned to the ten-key pad and you can directly access the desired function. The enlarged flat sheet keypad offers smooth and swift operation.

2.3-inch Large High Visibility LCD
The large, high contrast and highly visible LCD display user-friendly, graphic screens and ensures good readability under sunlight. The operating frequency in large characters can be recognized at a glance. Also, the night mode option allows for easy viewing in low light conditions.

“Flip-Flop” Channel Recall
The IC-A25NE stores the last ten channels used. You can easily recall those channels by using the directional keys or the channel knob or the keypad. This is convenient for switching between several channels, such as NAV and COM channels. You can also freely edit (replace, delete, and change order) the stored recall channels.

Built-in Bluetooth for Hands-Free Operation
Hands free operation can be achieved when paired with a compatible third-party wireless Bluetooth headset. When using the optional VS-3 Bluetooth headset, the sidetone function can be used.

Intelligent Battery with Detailed Battery Information
The supplied BP-288, 2350 mAh typical intelligent battery pack, provides up to 10.5 hours* of operating time. You can check the condition of the battery pack in the battery status screen. This is very useful for optimum charging and battery health maintenance.

Other Features
• 8.33 kHz channel spacing
• IP57 dust-protection and waterproof construction
• Operate with six AA-size alkaline batteries with the BP-289 battery case
• BNC Antenna connection
• 121.5 MHz emergency key
• Priority watch
• VFO scan, memory-channel scan, priority scan
• ANL (Auto Noise Limiter) for noise reduction
• Side tone function allows you to hear your voice via an external aviation headset
• Internal VOX capability
• 300 memory channels (in 15 memory groups) with 12 character names



NAVIGATION FUNCTIONS

VOR Navigation Functions
The CDI (Course Deviation Indicator) is detailed like a real VOR instrument; showing any deviation from your course.
The OBS (Omni Bearing Selector) allows you to change course from the original flight plan.
The TO-FROM indicator shows the position relationship between your aircraft and the course selected by the OBS.
The ABSS (Automatic Bearing Set System) function enables you to set the current course or a new course in two simple steps.

Near Station Search Function
The near station search function assists you in accessing nearby ground stations. The function searches for nearby stations using the station memories with the GPS position information. To use the near station search function, location data and frequencies of the ground station must be programmed.

Built-in GPS with Simplified Waypoint NAV
The simplified waypoint NAV guides you to a destination by using current position information from GPS (also GLONASS and SBAS). The waypoint NAV has two functions: Direct-To NAV and Flight Plan NAV. Up to 10 Flight Plans and 300 waypoints can be memorised in the IC-A25NE.

Flight Plan with Android/iOS App
Using RS-AERO1A (Android app) or RS-AERO1I (iOS app), you can make a flight plan on an Android/iOS device and import the plan to the IC-A25NE via Bluetooth. The following four functions are available:

1. Create a flight plan
You can make flight plans on an Android/iOS device by using preprogrammed waypoints in the IC-A25NE.
2. Set Direct-To NAV
You can pick up a point on the map and export it to the IC-A25NE for Direct-To NAV.
3. Display flight plan information
A flight plan in the IC-A25NE can be displayed on an Android/iOS device.
4. Display waypoint information
Preprogrammed waypoints in the IC-A25NE can be exported to an Android/iOS device and plotted on the map application.

Two Versions are available for both IC-A25CE and IC-A25NE
A ‘Sport’ pack is available combining the IC-A25CE or IC-A25NE transceiver with BP-289 AA Battery Case, CP-20 cigarette lighter cable with DC-DC converter, MB-133 belt clip, FA-B02AR antenna and hand strap.

A ‘Pro’ pack is available combining the IC-A25CE or IC-A25NE transceiver with BP-288 Li-Ion battery pack, OPC-2379 headset adapter cable, BC-224 rapid desktop charger, BC-06 AC adapter, CP-20 cigarette lighter cable with DC-DC converter, MB-133 belt clip, FA-B02AR antenna and hand strap.
