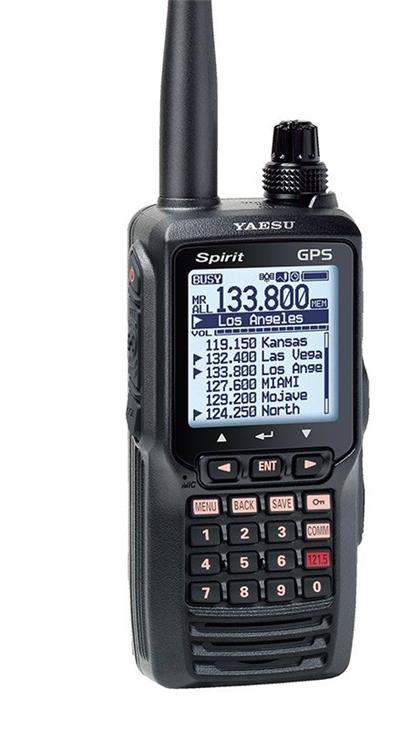

YAESU AIRBAND RADIO FTA-750

<ul>
	<li>
		5 watt TX output power ( Air band AM 5W PEP typical 1.5W carrier)</li>
	<li>
		Large 1.7&quot; x 1.7&quot; ( 43.2mm x 43,2mm) Dot matrix display ( 160 x 160 dots)</li>
	<li>
		ILS navigation display</li>
	<li>
		VOR Navigation display</li>
	<li>
		Integrated 66 channel WAAS GPS receiver</li>
	<li>
		Waypoint navigation and GPS waypoint logging &sup1;</li>
	<li>
		200 memory channel with 15 aplhanumberic characters per memory</li>
	<li>
		Back-Lit keypad and display with dimmer control</li>
	<li>
		Water protection - IPX5 rating</li>
	<li>
		Loud Audio (800mw)</li>
	<li>
		includes high capacity Rechargeable Li-ion Battery pack ( 7.4v 1800mAh).</li>
	<li>
		inlcudes Alkaline Battery Tray ( 6 x AA).</li>
</ul>
<p>
	&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; &sup1; YCE01PC Programming software (available online) is required to view GPS logging data.</p>
<table border="0">
	<tbody>
		<tr>
			<td>
				<span style="color: #ff6600;"><strong><span style="font-size: small;">GENERAL</span></strong></span></td>
			<td>
				&nbsp;</td>
		</tr>
		<tr>
			<td>
				Frequency Range</td>
			<td>
				TX: 118.000 MHz to 136.975 MHz</td>
		</tr>
		<tr>
			<td>
				&nbsp;</td>
			<td>
				RX: 108.000 MHz to 136.975Mhz (NAV and COM Band)</td>
		</tr>
		<tr>
			<td>
				Channel Spacing</td>
			<td>
				25KHz and 8.33KHz</td>
		</tr>
		<tr>
			<td>
				Emission Type</td>
			<td>
				TX: AM</td>
		</tr>
		<tr>
			<td>
				&nbsp;</td>
			<td>
				RX: AM</td>
		</tr>
		<tr>
			<td>
				Supply Voltage</td>
			<td>
				6.0 to 9.5v DC</td>
		</tr>
		<tr>
			<td>
				Current Consumption (approx)</td>
			<td>
				300&mu;A Power OFF</td>
		</tr>
		<tr>
			<td>
				&nbsp;</td>
			<td>
				70mA Battery Saver ON. Sver Ratio 50%</td>
		</tr>
		<tr>
			<td>
				&nbsp;</td>
			<td>
				80mA Squelch ON</td>
		</tr>
		<tr>
			<td>
				&nbsp;</td>
			<td>
				300mA Receiver</td>
		</tr>
		<tr>
			<td>
				&nbsp;</td>
			<td>
				0.9A Transmit ( 1.5W carrier)</td>
		</tr>
		<tr>
			<td>
				Temperature Range</td>
			<td>
				-10&deg;C to +60&deg;C (14&deg;F to 140&deg;F )</td>
		</tr>
		<tr>
			<td>
				Antennae Connector</td>
			<td>
				BNC</td>
		</tr>
		<tr>
			<td>
				Case Size (WxHxD0</td>
			<td>
				2.4&quot; x 5.2&quot; x 1.3&quot; (62 x 133 x 34mm) with SBR-12U</td>
		</tr>
		<tr>
			<td>
				Weight</td>
			<td>
				410gm (14.5oz) with SBR-12U and Antenna</td>
		</tr>
		<tr>
			<td>
				<span style="color: #ff6600;"><strong><span style="font-size: small;">RECEIVER</span></strong></span></td>
			<td>
				&nbsp;</td>
		</tr>
		<tr>
			<td>
				Circuit Type</td>
			<td>
				Double Conversion Superhet</td>
		</tr>
		<tr>
			<td>
				IF</td>
			<td>
				47.25MHz and 450KHz</td>
		</tr>
		<tr>
			<td>
				Sensitivity</td>
			<td>
				Better than 0.8&mu;V (for 6dB S/N with 1KHz 30% Modulation)</td>
		</tr>
		<tr>
			<td>
				Selectivity</td>
			<td>
				Better than 8kHz/-6dB</td>
		</tr>
		<tr>
			<td>
				Adjacent Channel Selectivity</td>
			<td>
				Less than 25kHz/-60dB</td>
		</tr>
		<tr>
			<td>
				AF Output (internal Speaker)</td>
			<td>
				0.8W @ 16ohms 10% THD</td>
		</tr>
		<tr>
			<td>
				<span style="color: #ff6600;"><span style="font-size: small;"><strong>TRANSMITTER</strong></span></span></td>
			<td>
				&nbsp;</td>
		</tr>
		<tr>
			<td>
				Power Output</td>
			<td>
				5.0W (PEP) @ 1.5W carrier Power)</td>
		</tr>
		<tr>
			<td>
				Frequency Stability</td>
			<td>
				Better than &plusmn;1ppm(-10&deg;C to +60&deg;C)</td>
		</tr>
		<tr>
			<td>
				Modulation System</td>
			<td>
				Low level Amplitude Modulation</td>
		</tr>
		<tr>
			<td>
				Spurious Emissions</td>
			<td>
				&gt; 70dB below Carrier</td>
		</tr>
		<tr>
			<td>
				Internal Microphone Type</td>
			<td>
				Condenser</td>
		</tr>
		<tr>
			<td>
				External Microphone Type</td>
			<td>
				150&Omega;</td>
		</tr>
		<tr>
			<td>
				<span style="color: #ff6600;"><strong><span style="font-size: small;">GPS UNIT</span></strong></span></td>
			<td>
				&nbsp;</td>
		</tr>
		<tr>
			<td>
				Receiver Channels</td>
			<td>
				66</td>
		</tr>
		<tr>
			<td>
				Sensitivity</td>
			<td>
				better than -147dBm</td>
		</tr>
		<tr>
			<td>
				Time&nbsp; to First Fix</td>
			<td>
				1 Minute typical (@ Cold Start)</td>
		</tr>
		<tr>
			<td>
				&nbsp;</td>
			<td>
				5 Seconds typical ( @ Hot Start)</td>
		</tr>
		<tr>
			<td>
				Geodetic Datum</td>
			<td>
				WGS84</td>
		</tr>
	</tbody>
</table>
<p>
	&nbsp;</p>

  • 5 watt TX output power ( Air band AM 5W PEP typical 1.5W carrier)
  • Large 1.7" x 1.7" ( 43.2mm x 43,2mm) Dot matrix display ( 160 x 160 dots)
  • ILS navigation display
  • VOR Navigation display
  • Integrated 66 channel WAAS GPS receiver
  • Waypoint navigation and GPS waypoint logging ¹
  • 200 memory channel with 15 aplhanumberic characters per memory
  • Back-Lit keypad and display with dimmer control
  • Water protection - IPX5 rating
  • Loud Audio (800mw)
  • includes high capacity Rechargeable Li-ion Battery pack ( 7.4v 1800mAh).
  • inlcudes Alkaline Battery Tray ( 6 x AA).

      ¹ YCE01PC Programming software (available online) is required to view GPS logging data.

GENERAL
Frequency Range TX: 118.000 MHz to 136.975 MHz
  RX: 108.000 MHz to 136.975Mhz (NAV and COM Band)
Channel Spacing 25KHz and 8.33KHz
Emission Type TX: AM
  RX: AM
Supply Voltage 6.0 to 9.5v DC
Current Consumption (approx) 300μA Power OFF
  70mA Battery Saver ON. Sver Ratio 50%
  80mA Squelch ON
  300mA Receiver
  0.9A Transmit ( 1.5W carrier)
Temperature Range -10°C to +60°C (14°F to 140°F )
Antennae Connector BNC
Case Size (WxHxD0 2.4" x 5.2" x 1.3" (62 x 133 x 34mm) with SBR-12U
Weight 410gm (14.5oz) with SBR-12U and Antenna
RECEIVER
Circuit Type Double Conversion Superhet
IF 47.25MHz and 450KHz
Sensitivity Better than 0.8μV (for 6dB S/N with 1KHz 30% Modulation)
Selectivity Better than 8kHz/-6dB
Adjacent Channel Selectivity Less than 25kHz/-60dB
AF Output (internal Speaker) 0.8W @ 16ohms 10% THD
TRANSMITTER
Power Output 5.0W (PEP) @ 1.5W carrier Power)
Frequency Stability Better than ±1ppm(-10°C to +60°C)
Modulation System Low level Amplitude Modulation
Spurious Emissions > 70dB below Carrier
Internal Microphone Type Condenser
External Microphone Type 150Ω
GPS UNIT
Receiver Channels 66
Sensitivity better than -147dBm
Time  to First Fix 1 Minute typical (@ Cold Start)
  5 Seconds typical ( @ Hot Start)
Geodetic Datum WGS84
