LONG COMMUNICATIONS

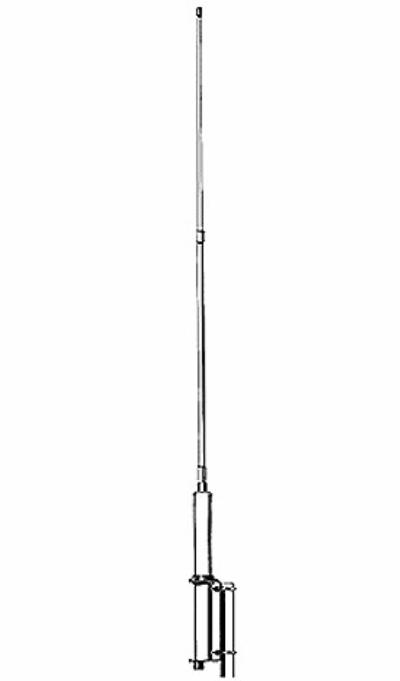

4 METRES HIGH GAIN BASE AERIAL

<p>
	Features:</p>
<p>
	- Base station antenna, Mono-band&nbsp;<br />
	- Low-gain, Omnidirectional&nbsp;<br />
	- Protection from static discharges DC-Ground&nbsp;<br />
	- Made of aluminium alloy 6063 T-832</p>
<p>
	&nbsp;Electrical Data&nbsp;<br />
	- Type: 3/4&lambda; coaxial J-pole&nbsp;<br />
	- Frequency range:<br />
	&nbsp;&nbsp; tunable 68...73 MHz</p>
<p>
	Impedance: 50&Omega;&nbsp;<br />
	- Radiation (H-plane): 360&deg; omnidirectional&nbsp;<br />
	- Radiation (E-plane): beamwidth @ -3 dB = 60&deg;&nbsp;<br />
	- Radiation angle: 3&deg;&nbsp;<br />
	- Polarization: linear vertical&nbsp;<br />
	- Gain: 2dBd - 4.15 dBi&nbsp;<br />
	- Bandwidth @ SWR &le;1.5:</p>
<p>
	Impedance: 50&Omega;&nbsp;<br />
	- Radiation (H-plane): 360&deg; omnidirectional&nbsp;<br />
	- Radiation (E-plane): beamwidth @ -3 dB = 60&deg;&nbsp;<br />
	- Radiation angle: 3&deg;&nbsp;<br />
	- Polarization: linear vertical&nbsp;<br />
	- Gain: 2dBd - 4.15 dBi&nbsp;<br />
	- Bandwidth @ SWR &le;1.5:</p>
<p>
	&nbsp; Length 270-336 cm.</p>
<p>
	<strong>PRICE &euro;79</strong></p>

Features:

- Base station antenna, Mono-band
- Low-gain, Omnidirectional
- Protection from static discharges DC-Ground
- Made of aluminium alloy 6063 T-832

 Electrical Data
- Type: 3/4λ coaxial J-pole
- Frequency range:
   tunable 68...73 MHz

Impedance: 50Ω
- Radiation (H-plane): 360° omnidirectional
- Radiation (E-plane): beamwidth @ -3 dB = 60°
- Radiation angle: 3°
- Polarization: linear vertical
- Gain: 2dBd - 4.15 dBi
- Bandwidth @ SWR ≤1.5:

Impedance: 50Ω
- Radiation (H-plane): 360° omnidirectional
- Radiation (E-plane): beamwidth @ -3 dB = 60°
- Radiation angle: 3°
- Polarization: linear vertical
- Gain: 2dBd - 4.15 dBi
- Bandwidth @ SWR ≤1.5:

  Length 270-336 cm.

PRICE €79
