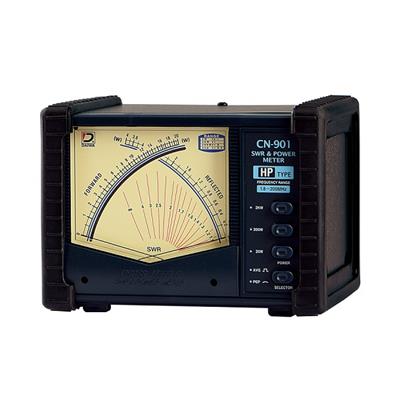

The CN-901HP is a high-quality instrument with unique features which make tedious measurement of SWR and Power during antenna tests, matching and tuning of transmitters a very easy task. SWR and Power indicators are installed in one meter unit. One scale will indicate Forward Power. Another scale Reflected Power and SWR is indicated at the crossing point of the 2 needles. The unique feature makes it possible to read Forward Power, Reflected Power and SWR all at the same time. The HP Type can also check P.E.P (Peak Power in SSB operation.)
Technical Specifications:
-
Frequency: 1.8 to 200MHz*
-
Power Range: Forward: 20/200/2 KW
-
Tolerance: ± 10% at full scale
-
SWR Measurement: 1:1?1:∞
-
SWR Detection Sensitivity: 5W
-
Input / Output Impedance: 50 Ohms
-
Input / Output Connectors: M Type
-
DC Power Supply: DC13.8V (70mA)*
-
Dimensions (W x H x D): 157mm x 117mm x 117mm
-
Weight: 1KG
*Add 15% of full scale at 160-200MHz. Power Rating MAX 1kw (144MHz)
*DC Power (13.8V) is necessary to operate.
*The suitable DC plug size: Diameter (inside/outside): 2.5mm/5.5mm, Length: 9mm
*Meter Light: ON/OFF can be switched by light switch.
PRICE €199
