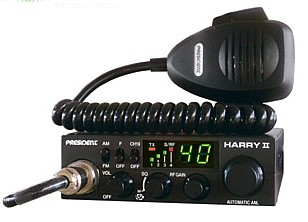

Features;
- Traditional rotary channel change control
- CH19 switch
- Frequency band selection
- AM/FM mode switch
- RF gain control
- PA Facility
- ASC Automatic Squelch Control
- Supplied with Microphone, power cable and mounting kit.
Technical Specifications:
|
Band Configuration
|
FM Channel
|
AM Channel
|
Country
|
|
E
|
40 Ch (4W)
|
40 Ch (4W)
|
ES, IT, GR, IE, RUS
|
|
d
|
80 Ch (4W)
|
12 Ch (1W)
|
DE
|
|
d2
|
40 Ch (4W)
|
12 Ch (1W)
|
DE 2
|
|
EU
|
40 Ch (4W)
|
40 Ch (1W)
|
GR, IE, NL, PT,
ES, CH, FR
|
|
EC
|
40 Ch (4W)
|
|
LU, DK
|
|
U
|
CEPT 40 Ch (4W)
+ UK 40 Ch (4W)
|
|
GB
|
|
PL
|
-5 KHz 40 Ch (4W)
|
-5 KHz 40 Ch (4W)
|
PL
|
|
Frequency
|
26.965 - 27.405 MHz
|
|
Power Supply
|
13.8V DC
|
|
Sensitivity
|
0.2uV - 120dBm (min) / 1 uV - 47dBm
|
|
Size
|
115 (L) x 180 (H) x 35 (D) mm
|
|
